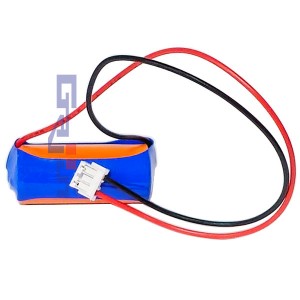

○ Maxell ER10/28 3.6V (Mitsubishi FX2NC-32BL) 대체품

■ Primary Lithium Thionyl Chloride Battery (리튬 염화티오닐 1차배터리)

ㅡ 커넥터 YH-15001HS-03M-1B3R 극성주의

   전선의 (위치 확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

◇ Nominal Capacity : 400 mAh

◇ Nominal Voltage : 3.6 V

◇ Standard Discharge Current : 0.5 mA

◇ Max. Continuous Discharge Current : 5 mA

◇ Max. Pulse Discharge Current : 10 mA

◇ Discharge Cut-off Voltage : 2.0 V

◇ Self-discharge Rate : ≤1%

◇ Operating Temperature : -55~85℃

◇ Weight : Approx. 4.5 g

◇ Dimension : 10.5(11.5) x 27 mm
