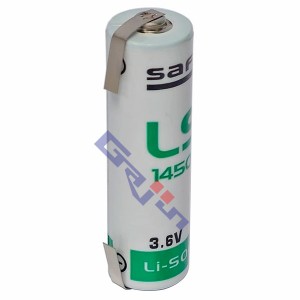

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂) (리튬염화물 1차배터리)

- AA Size bobbin cell

ㅡ 납땜용(PCB) 니켈단자 부착

◇ Nominal Capacity : 2.6Ah (2600mAh)

◇ Open circuit voltage : 3.67V (at + 20 ℃)

◇ Nominal Voltage : 3.6V (at 0.2 mA + 20 ℃)

◇ Nominal energy : 9.36Wh

◇ Pulse Capability : Typically up to 250mA

◇ Maximum Recommended Continuous Current : 50mA

◇ Storage Temperature : +30℃ (max)

◇ Operating temperature range : -60 ~ 85 ℃

◇ Size : (AA) 14.55 x 50.7mm

◇ Typical Weight : 17g
