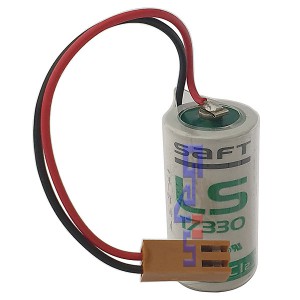

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂) (리튬염화물 1차배터리)

  - 2/3A Size bobbin cell

◇ Nominal Capacity : 2.1 Ah (2100 mAh)

◇ Open circuit voltage : 3.67 V (at + 20 ℃)

◇ Nominal Voltage : 3.6 V (at 0.2 mA + 20 ℃)

◇ Nominal energy : 7.56 Wh

◇ Pulse Capability :  Typically up to 120 mA

◇ Maximum Recommended Continuous Current : 25 mA

◇ Storage Temperature : +30 ℃ (max)

◇ Operating temperature range : -60 ~ 85 ℃

◇ Size(Diameter xHeight)  17(18.5) x35 mm (about)

◇ Typical Weight : 16 g (about)
