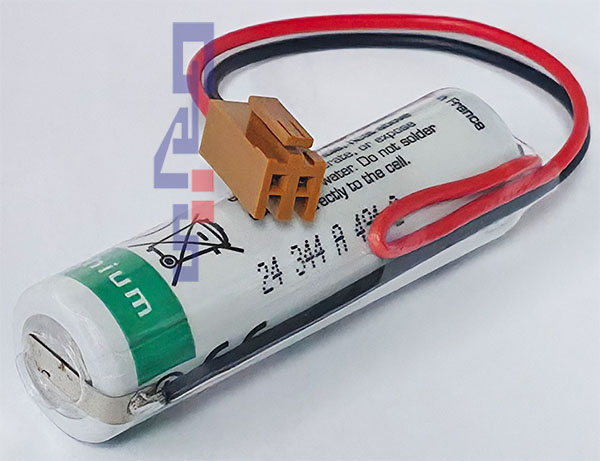

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂리튬염화물 1차배터리)

  - AA Size bobbin cell high energy density

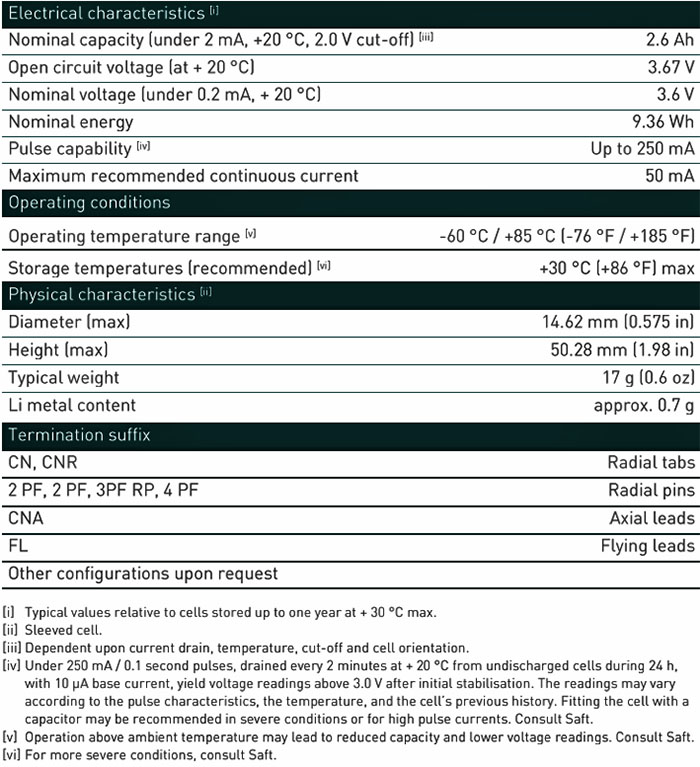

◇ Nominal Capacity : 2.6Ah (2600mAh)

◇ Open circuit voltage : 3.67V (at + 20 ℃)

◇ Nominal Voltage : 3.6V (at 0.2 mA + 20 ℃)

◇ Nominal energy : 9.36Wh

◇ Pulse Capability :  Typically up to 250mA

◇ Maximum Recommended Continuous Current : 50mA

◇ Storage Temperature : +30 ℃ (max)

◇ Operating temperature range : -60 ~ 85 ℃

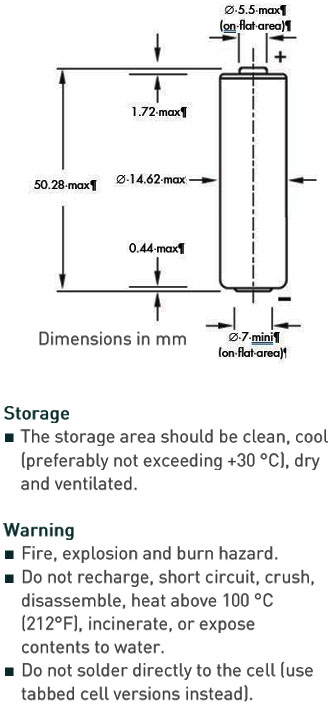

◇ Size : (AA) 15/16.5(D) x 52(H)mm (about)

◇ Weight : 18g (about)
