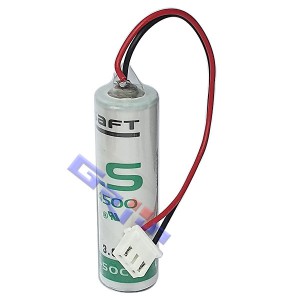

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂) (리튬염화물 1차배터리)

  - AA Size bobbin cell

◇ Nominal Capacity : 2.6 Ah (2600 mAh)

◇ Open circuit voltage : 3.67 V (at + 20 ℃)

◇ Nominal Voltage : 3.6 V (at 0.2 mA + 20 ℃)

◇ Nominal energy : 9.36 Wh

◇ Pulse Capability :  Typically up to 250 mA

◇ Maximum Recommended Continuous Current : 50 mA

◇ Storage Temperature : +30 ℃ (max)

◇ Operating temperature range : -60 ~ 85 ℃

◇ Diameter  15(16.5) mm (about)

◇ Height :  52 mm (about)


◇ Typical Weight : 18 g (about)
