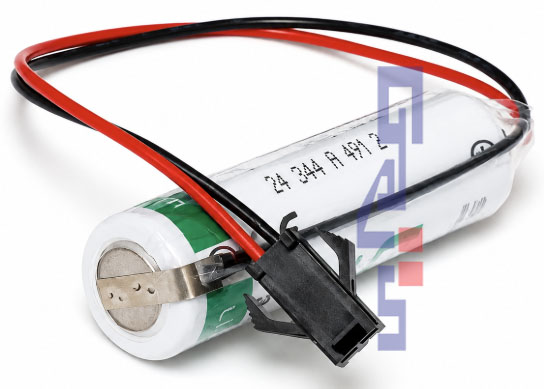

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂) (리튬염화물 1차배터리)
- AA Size bobbin cell

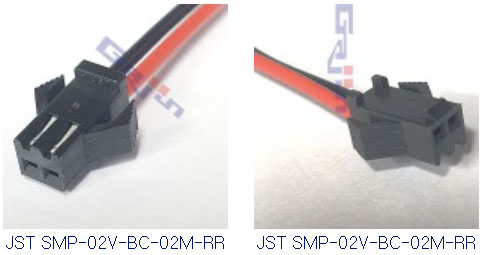

ㅡ 커넥터 JST SMP-02V-BC-02M-RR 극성주의
전선의 (좌, 우 위치확인) 빨간색은 +/플러스, 흰색은 -/마이너스

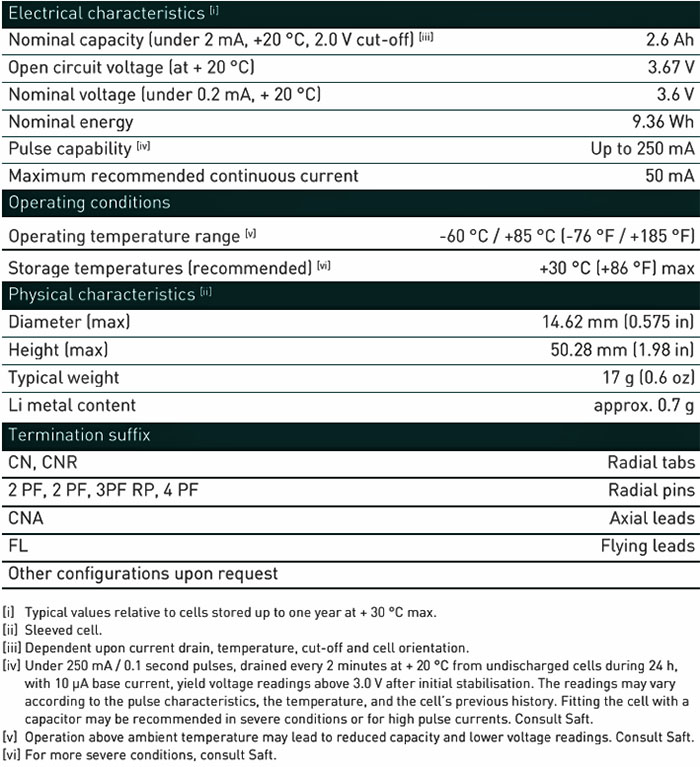

◇ Nominal Capacity : 2.6 Ah (2600 mAh)
◇ Open circuit voltage : 3.67 V (at + 20 ℃)
◇ Nominal Voltage : 3.6 V (at 0.2 mA + 20 ℃)
◇ Nominal energy : 9.36 Wh
◇ Pulse Capability : Typically up to 250 mA
◇ Maximum Recommended Continuous Current : 50 mA
◇ Storage Temperature : +30 ℃ (max)
◇ Operating temperature range : -60 ~ 85 ℃

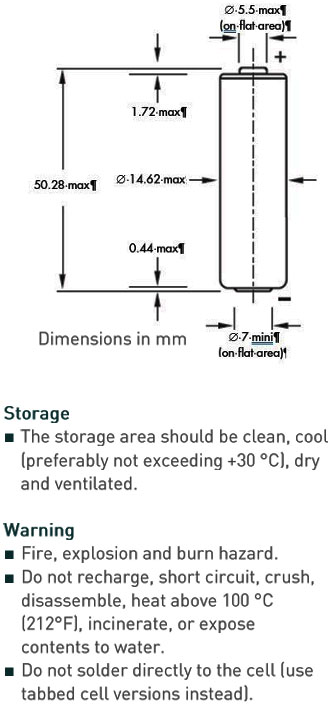

◇ Diameter : 15(16.5) x 52mm (about)
◇ Typical Weight : 18 g (about)
