■ Lithium Manganese Dioxide Battery (리튬 이산화망간 1차배터리)

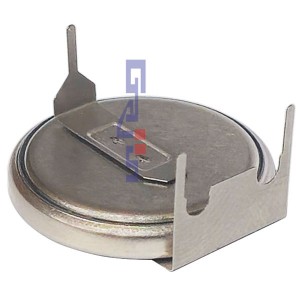

ㅡ 플러스(+) 극에 2핀단자를 붙이고 마이너스(-) 극에는 1핀단자를 붙였습니다.
ㅡ 플러스(+) 2핀의 간격 : 10mm
< 1Pin : 0.1(T) x 0.9(W) x 4(L) mm >
ㅡ 플러스와 마이너스의 거리 : 17.8mm
◇ Nominal Voltage : 3V
◇ Nominal Capacity : 240mAh
◇ Nominal Discharge Current : 0.2mA
◇ Operating Temperature Range : -20 ~85 ℃
◇ Size : 20(20.5) x 3.2(3.5)mm (about)
◇ Weight : 3.5g (about)
◇ Pulse Discharge : 200mAh (about)
< ↑ 플러스(+) 2핀단자 >
* Nominal capacity indicates duration until the voltage drops down to 2.0V when discharged at a nominal discharge current at 20 deg. C.
** When using these batteries at temperatures outside the range of 0 to +40 deg. C, please consult Maxell in advance for conditions of use.
*** Dimensions and weight are for the battery itself, but may vary depending on terminal specifications and other factors.
