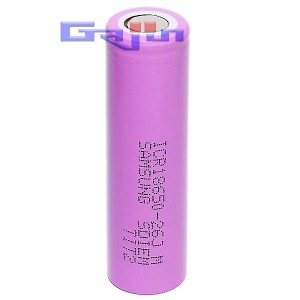

■ Lithium-ion Rechargeable Cell (리튬이온 충전배터리)

 ㅡ 리튬이온은 보호회로(PCM)를 연결하여 사용해 주셔야합니다.

◇ Nominal Capacity : 2600mAh (0.2C,  2.75V discharge)

◇ Minimum Capacity : 2550mAh (0.2C,  2.75V discharge )

◇ Charging Voltage : 4.2 ± 0.05V

◇ Nominal Voltage : 3.63V

◇ Charging Method : CC-CV ( Constant Voltage with limited Current )

◇ Standard Charge Current : 1300mA / 3 hours

◇ Rapid Charge Current :  2600mA / 2.5 hours

◇ Max. Charge Current : 2600mA ( Ambient Temperature 25 ℃ )

◇ Max.Discharge Current : 5200mA ( Ambient Temperature 25 ℃ )

◇ Discharge Cut-off Voltage : 2.75V

◇ Cell Weight : 45.0g (max)

◇ Cell Dimension : ( Height ) 65.00 mm max, ( Diameter ) 18.40mm max

◇ Operating Temperature : ( Charge ) 0 to 45 ℃, ( Discharge ) -20 to 60 ℃

◇ Storage Temperature : ( 1 year ) -20 ~ 25℃, ( 3 months ) -20 ~ 45 ℃,

                           ( 1 month ) -20 ~ 60 ℃
