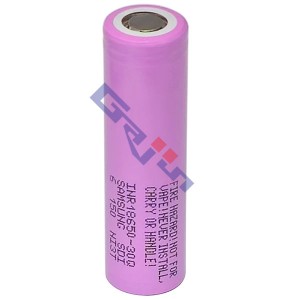

■ Lithium-ion Rechargeable Cell for power tools (리튬이온 충전배터리 전동공구용)

ㅡ 급속방전용

ㅡ 리튬이온은 보호회로(PCM)를 연결하여 사용해 주셔야합니다.

◇ Nominal Discharge Capacity : 3000mAh

◇ Nominal Voltage : 3.6V

◇ Standard Charge : CCCV,  1.50 A,  4.20 ± 0.05 V, 150 mA cut-off

◇ Rapid Charge : CCCV, 4 A,  4.20 ± 0.05 V, 100 mA cut-off

◇ Charging time : ( Standard charge 180 min / 150 mA cut-off )

                ( Rapid charge 70 min - at 25 ℃ / 100 mA cut-of )

◇ Max. Continuous Discharge : 15 A ( at 25 ℃ ) 60% at 250 cycle

◇ Discharge cut-off voltage ( End of discharge ) : 2.5 V

◇ Cell weight : 48g

◇ Cell dimension : ( Height ) 64.85 ± 0.15 mm,

                  ( Diameter ) 18.33 ± 0.07 mm

◇ Operating temperature :  ( Charge ) 0 to 50 ℃,

                        ( Discharge ) -20 to 75 ℃
