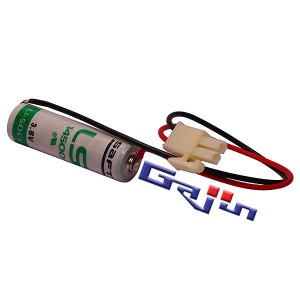

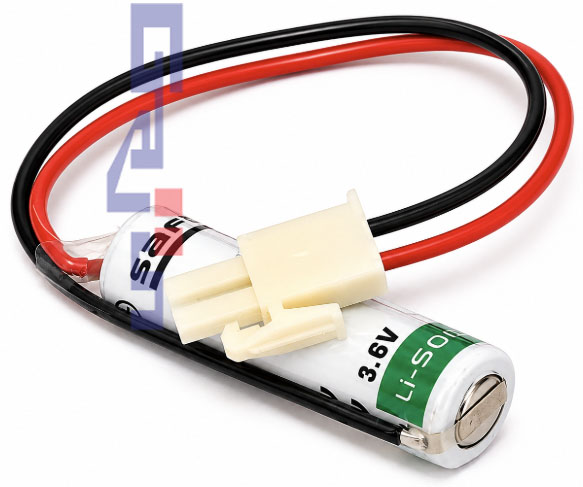

■ Primary Lithium-thionyl chloride Battery (Li-SOCl₂) (리튬염화물 1차배터리)

  - AA Size bobbin cell high energy density

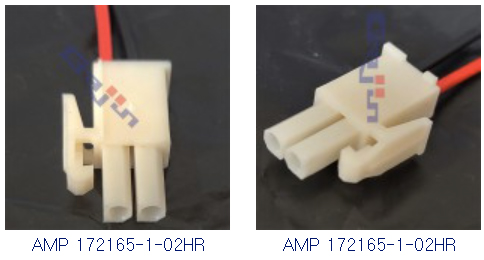

ㅡ 커넥터 AMP 172165-1-02HR 극성주의

 전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

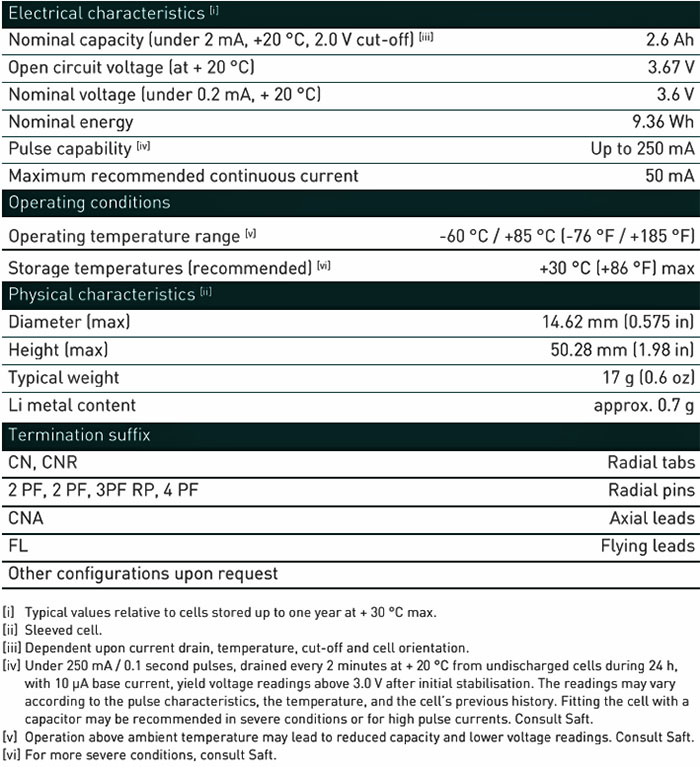

◇ Nominal Capacity : 2.6Ah (2600mAh)

◇ Open circuit voltage : 3.67V (at + 20 ℃)

◇ Nominal Voltage : 3.6V (at 0.2 mA + 20 ℃)

◇ Nominal energy : 9.36Wh

◇ Pulse Capability :  Typically up to 250mA

◇ Maximum Recommended Continuous Current : 50mA

◇ Storage Temperature : +30℃ (max)

◇ Operating temperature range : -60 ~ 85℃

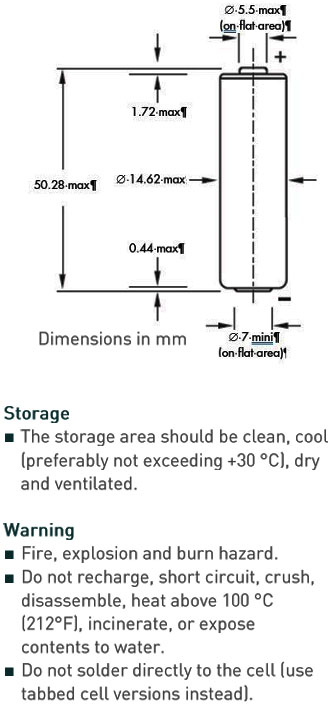

◇ Size : (AA) 14..65(16) x 51mm (about)

◇ Weight : 19g (about)
