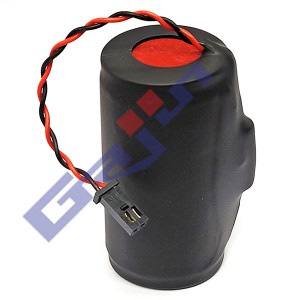

■ Primary lithium Battery (리튬1차전지)

  3.6 V Primary lithium-thionyl chloride (Li-SOCl₂) High energy

ㅡ 용도 : 코러스 가스부피환산장치(가스계량기, 온압 보정기)

◇ Nominal Capacity : 17.0 Ah ( 17,000 mAh )

◇ Open Circuit Voltage : 3.67 V

◇ Nominal Voltage : 3.6 V

◇ Nominal Energy : 61.2 Wh

◇ Pulse capability : Typically up to 400 mA

◇ Maximum recommended continuous current : 250 mA

◇ Storage Temperature : +30 ℃ max

◇ Operating temperature : - 60 ~ 85 ℃

◇ Size : (D) 33.5(40) x 68 mm (about)

◇ Weight : 91 g (about)

< ↓ 아래는 단셀(1Cell)에 대한 정보입니다 >
