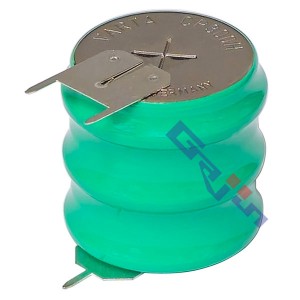

■ Nickel Metal Hydride (니켈수소 충전배터리)
◇ Voltage : 3.6V
◇ Typical Capacity : 300mAh
◇ Nominal Capacity : 280 mAh
◇ Diameter/Width : 25.8mm
◇ Height : 26.9mm
◇ Weight : 33g
◇ Max. Discharge Current : 560mA
◇ Life Expectancy (typical) : 1000 Cycles
◇ Overcharge (20 ℃) : 28 mA continuous, 56 mA 1 year
◇ Typical Capacities : (at 1 CA / 0.90 V) 138 mAh
(at 2 CA / 0.90 V) 57 mAh
◇ Temperature Ranges
ㅡ Storage : -40 ~ 65 ℃
ㅡ Discharge : -20 ~ 65 ℃
ㅡ Charge : 0 ~ 65 ℃
◇ Charging Method
ㅡ Normal Charging : 28mA for 14 - 16 h
ㅡ Accelerated Charging (20℃) 56 mA for 7 - 8 h
ㅡ Fast Charging : 140mA for 3 h
ㅡ Trickle Charging : 8.4mA
< 1핀 마이너스(-) 극 ↓ >
< 2핀 플러스(+) 극 ↑ >
|
