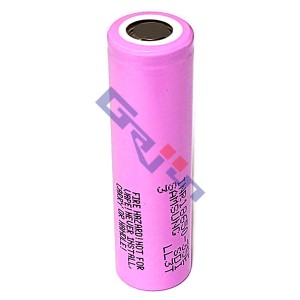

■ Lithium-ion rechargeable cell (리튬이온 충전배터리)

ㅡ 리튬이온 충전배터리는 보호회로를 연결하여 사용해 주셔야합니다.

◇ Standard discharge Capacity : 3350mAh (3.35Ah)

◇ Nominal Voltage : 3.6V (Charging Voltage 4.2V)

◇ Discharge Cut-off Voltage : 2.65 V

◇ Standard Charge Current : 1700mA (Time 4 hours)

◇ Maximum Charge Current : 2000mA (2A)

◇ Max. Discharge Current : 8000mA (for Continuous discharge)

◇ Peak Discharge Current : 13000mA (not for continuous discharge)

◇ Operation Temperature Range : (Charge) 0 ~ 45 ℃,

                     (Discharge) -10 ~ 60℃

◇ Storage Temperature Range : 0 ~ 23 ℃

◇ Weight : 50g

◇ Size : (4/3FA) 18.55 x 65.25 mm

                                                      < 마이너스(-) 극 ↑ >
