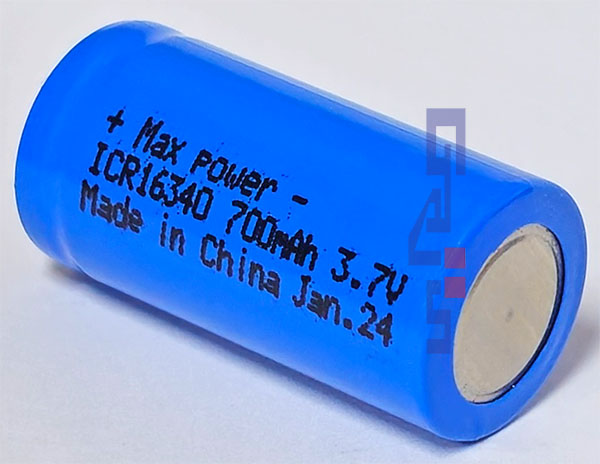

ㅇ ICR17335와 거의 같은 사이즈입니다(플러스 단자/볼록캡)
■ Li-ion Rechargeable Battery (리튬이온 충전배터리)
ㅡ 리튬이온은 보호회로(PCM)를 연결하여 사용하셔야 합니다.

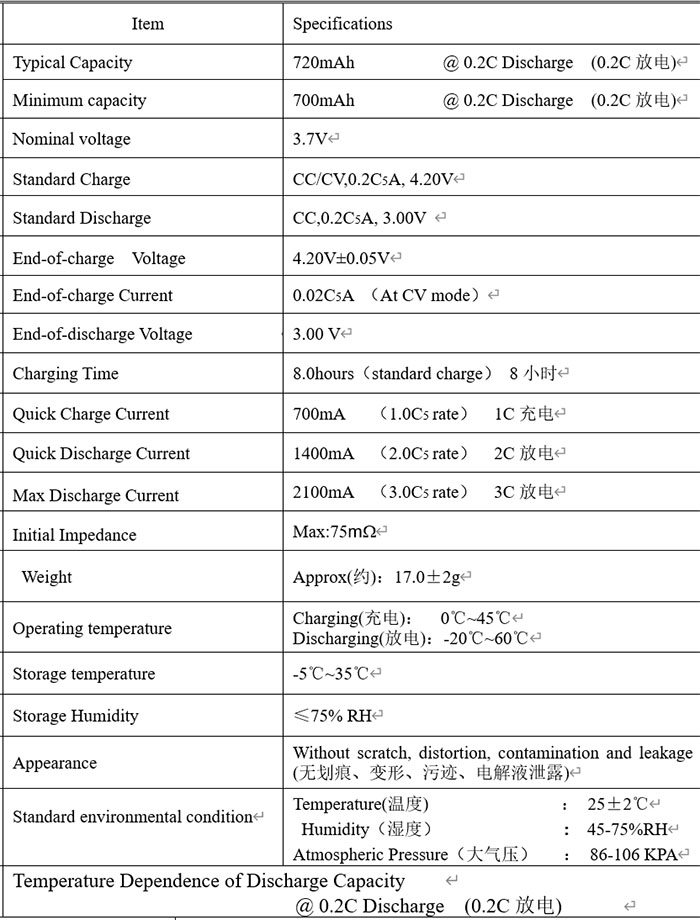

◇ Typical Capacity : 720mAh (0.2C Discharge)
◇ Minimum capacity : 700mAh
◇ Nominal Voltage : 3.7V
◇ Max Charge Voltage : 4.2V
◇ Standard Charge Current : (0.2C / 140mA)
◇ Standard Discharge Current : (0.2C / 140mAh)
◇ Quick Charge current : 700mA
◇ Quick Discharge Current : 1400mA (2C)
◇ Max Discharge Current : 2100mA (3C)
◇ End-of-discharge Voltage : 3V
◇ Size : (2/3A) 16.4 x 34mm
◇ Weight : 17g
◇ Operating temperature : Charging 10 ~ 45℃,
Discharging -20 ~ 60℃
◇ Storage temperature : -5 ~ 35℃
