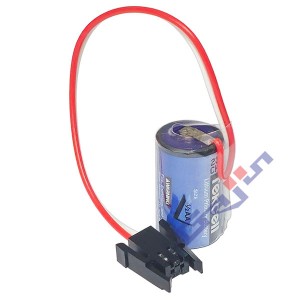

■ Lithium Primary Battery (리튬1차전지)
ㅡ 커넥터 HRS HNC2-2.5S-02M-RB 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 하얀색(검은색)은 마이너스(-)
◇ Nominal Voltage : 3.6V
◇ Nominal Capacity : 1200mAh(1.2 Ah) (at 1mA, +20℃, 2.0 V cut off)
◇ Nominal Current : 1mA
◇ Maximum recommended continuous current : 20mA
(to get 50% of the nominal capacity, +20 ℃, 2.0 V Cut Off)
◇ Max. pulse discharge current : 50mA
(to get 50% of the nominal capacith for "ON" load 1min
and "OFF" load 9min at +20℃ 2.0V Cut Off)
◇ Operating temperature range : -55℃ ~ 85 ℃
◇ Size : (1/2AA) 14.6(16) x 26 mm (about)
◇ Weight : 11g (about)
< ↓ 아래는 단셀(1Cell)에 대한 정보입니다 >
◎ Warning
Fire, explosion and severe burn hazard.
Do not recharge, crush, disassemble, heat above 212℉(100℃),
incinerate, short circuit of expose contents to water.
Keep battery out of reach of children and in original package until ready to use.
Dispose of used batteries promptly.
※ Any information given here is for reference only.
Information is also dependent on actual conditions of use and does not guarantee future performance,
and subject to change.
