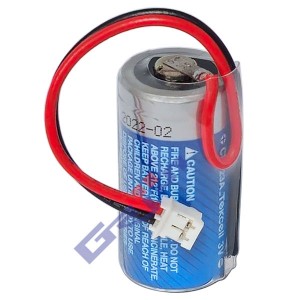

ㅡ 커넥터 Hanlim CH0500-02M-RR 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)
◇ Nominal Voltage : 3V
◇ Nominal Capacity : 1500mAh (1.5Ah)
◇ Maximum recommended continuous current : 1000mA
◇ Max. pulse discharge current : 3000mA
◇ Weight : 18g (about)
◇ Size : (2/3A) 17.2(19) x 36 mm (about)
◇ Operating temperature range : -30 ~ 60 ℃
< ↓ 아래는 단셀(1Cell)에 대한 정보입니다 >
※ This data was made on basis of nominal capacity for the purpose of enabling users
to forecast approximate life time. In order to calculate precise life time under various environments,
we recommend you to consult Vitzrocell.
⊙ Warning
Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 212 (100 ),
incinerate, short circuit or expose contents to water.
Keep battery out of reach of children and in original package until ready to use.
Dispose of used batteries promptly
* Any information given here is for reference only.
Information is also dependent on actual conditions of use and does not guarantee future performance,
and subject to change
