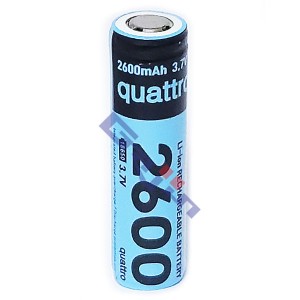

■ Lithium-ion Rechargeable Cell (리튬이온 충전배터리)

 ㅡ Cham ICR18650-26 (3.7V 2600mAh)에 보호회로(PCM) 장착으로

 길이가 약 5mm 길어졌습니다.

◇ Nominal Capacity : 2600mAh

◇ Charging Voltage : 4.2 ± 0.05V

◇ Nominal Voltage : 3.63V

◇ Standard Charge Current : 1300mA / 3 hours

◇ Rapid Charge Current :  2000mA (because of the PCM specification)

◇ Max.Discharge Current : 2000mA (because of the PCM specification)

◇ Discharge Cut-off Voltage : 2.75V

◇ Weight : 46g (about)

◇ Size : (3/4FA) 18.8 x 69.5mm

◇ Operating Temperature : ( Charge ) 0 to 45 ℃, ( Discharge ) -20 to 60 ℃

◇ Storage Temperature : ( 1 year ) -20 ~ 25℃, ( 3 months ) -20 ~ 45 ℃,

                       ( 1 month ) -20 ~ 60 ℃
