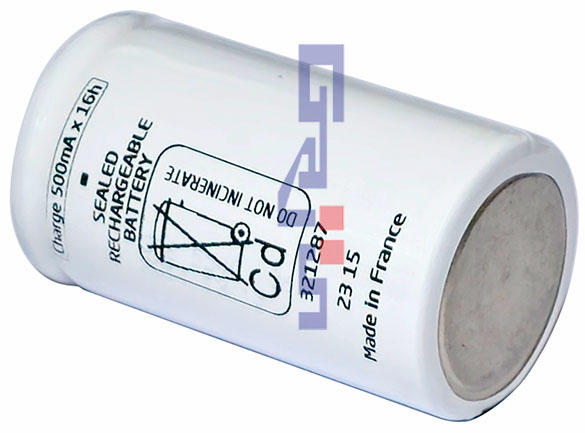

ㅡ 산업용(조립작업) 배터리로 플러스(+) 극이 평면입니다(둘레와 같은 높이)
개별(낱 셀)로 사용을 하시려면 플러스 캡을 연결해야 합니다.
■ Ni-Cd Battery (니켈카드뮴 충전배터리)
◇ Nominal voltage : 1.2V
◇ Typical Capacity : 5500mAh (5.5Ah)
◇ IEC designation : KRHR 33/62
◇ Dimensions(Diameter x Height) : (D)32.15 (±0.10) x 58.2 (±0.4) mm
◇ Top projection : 1.4 (±0.4) mm
◇ Top flat area diameter : 5.6 (±0.1) mm
◇ Weight : 150g
◇ Fast Charge Current : Max. 5000mA (Time ~1 h), (Temp. 10 to 40 ℃)
◇ Standard Charge Current : 500mA (Time 16 h), (Temp. 5 to 50 ℃)
◇ Trickle Charge Current : 150mA
◇ Maximum Discharge Current : 50A (at +20 ℃)
 < 마이너스 극(-) ↑ >

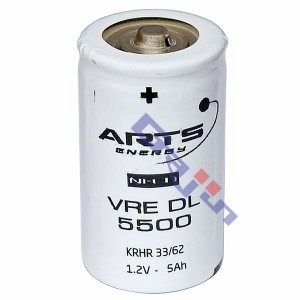

▶ ARTS Energy’s VRE standard Ni-Cd series are perfectly suited to cycling applications.
It is designed for a wide range of
applications requiring a high level of robustness.
|
