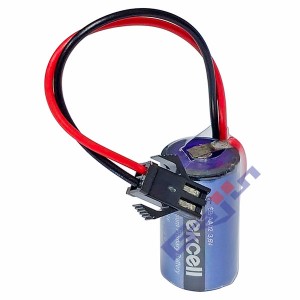

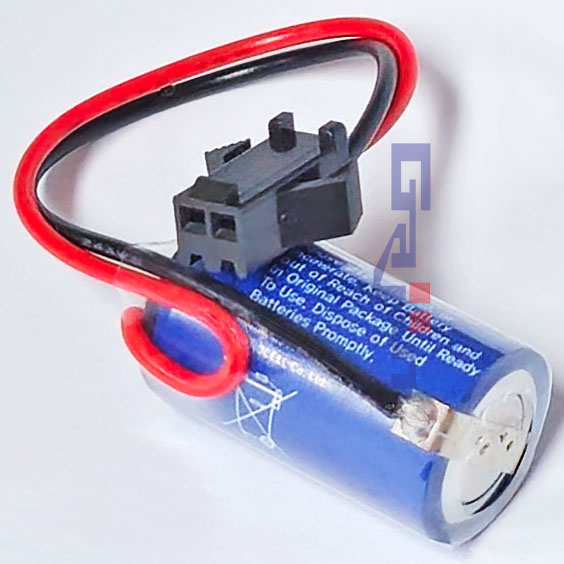

■ Lithium Primary Battery (리튬1차배터리)

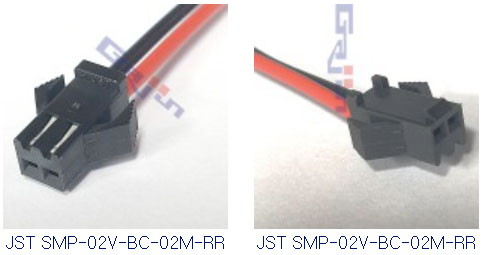

ㅡ 커넥터 JST SMP-02V-BC-02M-RR 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

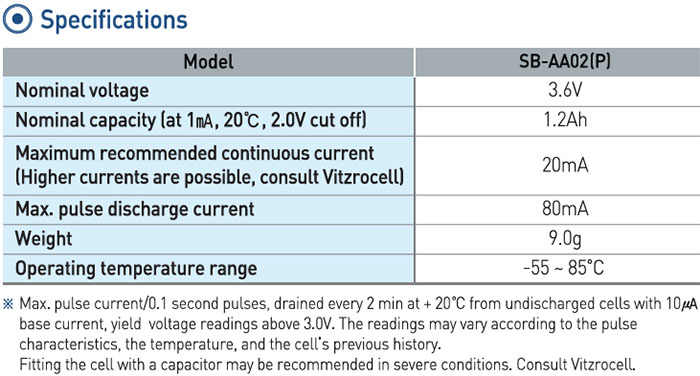

◇ Nominal Voltage(공칭전압) : 3.6 V

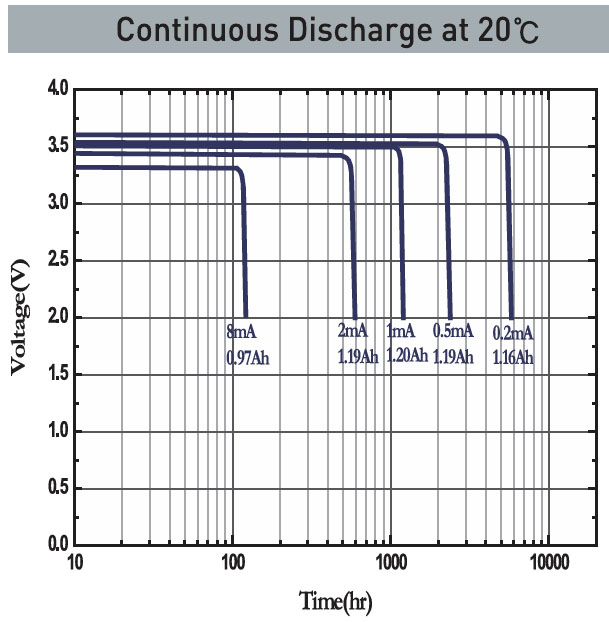

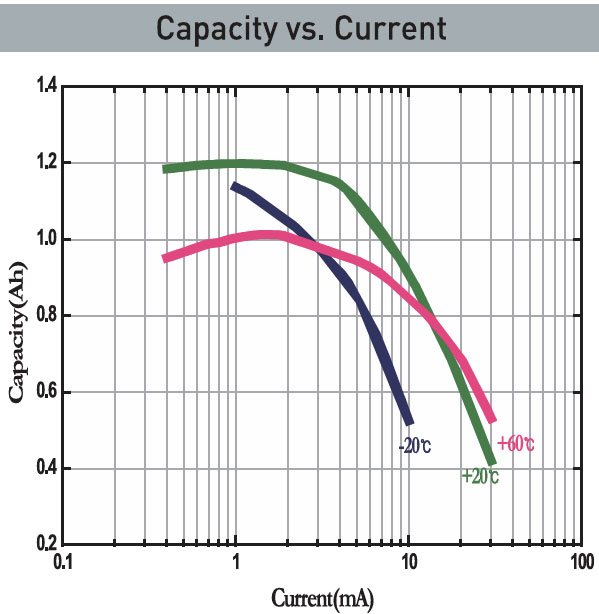

◇ Nominal Capacity(공칭용량) : 1200mAh (1.2 Ah) (at 1mA, +20℃, 2.0 V cut off)
◇ Nominal Current(표준 방전전류) : 1mA
◇ Maximum recommended continuous current(최대연속 방전전류) : 20mA
(to get 50% of the nominal capacity, +20 ℃, 2.0 V Cut Off)
◇ Max. pulse discharge current(최대펄스 방전전류) : 50mA
(to get 50% of the nominal capacith for "ON" load 1min
and "OFF" load 9min at +20℃ 2.0V Cut Off)
◇ Operating temperature range(사용온도 범위) : -55℃ ~+85℃

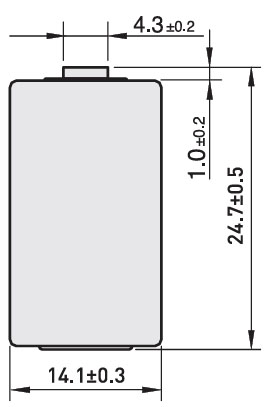

◇ Size(크 기) : (1/2AA) 14.3(15.5) x 26mm (about)
◇ Weight(중 량) : 10g (about)
< ↓ 아래는 단셀(1Cell)에 대한 정보입니다 >
◎ Warning
Fire, explosion and severe burn hazard.
Do not recharge, crush, disassemble, heat above 212℉(100℃),
incinerate, short circuit of expose contents to water.
Keep battery out of reach of children and in original package until ready to use.
Dispose of used batteries promptly.
※ Any information given here is for reference only.
Information is also dependent on actual conditions of use and does not guarantee future performance,
and subject to change.
|
